I/P luftdreven pumpe til ATEX, zone 2. Til transport af farlige materialer, hvor elektricitet ikke bør benyttes. Tilsluttes kompressor. Nem at betjene og få vedligeholdelsesudgifter. Med 3/4 hk kontinuerligt drev. ±10% nøjagtighed på hastigheden. Kom plet med regulator, luftfilter 5 µm, 1/4" NPT-tilslutning, 0 - 2 bar manometer og lyddæmper. ATEX zone 2 godkendt: EEx II 3 G c IIC T6 NEC Class I, Division 2, Groups A, B, C, D, T6. Systemet består af: 07589-30 Masterflex I/P drev, 100 - 650 o/min. 77601-80 Masterflex I/P Easy-Load pumpehus Passer til slanger I/P 26, I/P 73 og I/P 82, og kan give et flow fra 0,6 til 13 L/min.

Pump safely in hazardous environments.

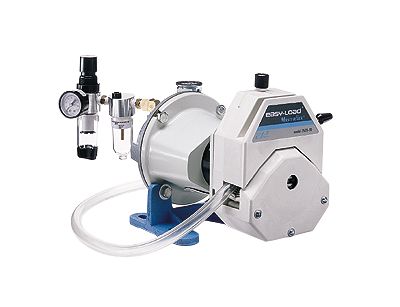

Includes 07589-30 drive, 77602-80 ATEX Easy-Load Pump head, 10-ft of C-FLEX® Ultra, I/P® 73 tubing, regulator with 5-µm air filter and 1/4'' NPT(F) connection, automatic lubricator, 0 to 100 psi pressure gauge, and muffler.

Key Features:

Flow rate 0.6 to 13 LPM I/P tubing—flow rate depends on drive rpm, pump head, and tubing size.

Easily adjust motor speed by using included regulator.
Effortlessly connect to your existing air supply or compressor.
The 3/4-hp air-powered motor starts smooth, runs cool, and requires little maintenance
ATEX Zone 2 approved; rated to EEXII 3 G c IIC T6; NEC Class 1, Division 2, Groups A, B, C, D, T6Air-powered system is ATEX Zone 2 approved; rated to EEX II 3 G c IIC T6
