InLab Ultra-Micro-DES

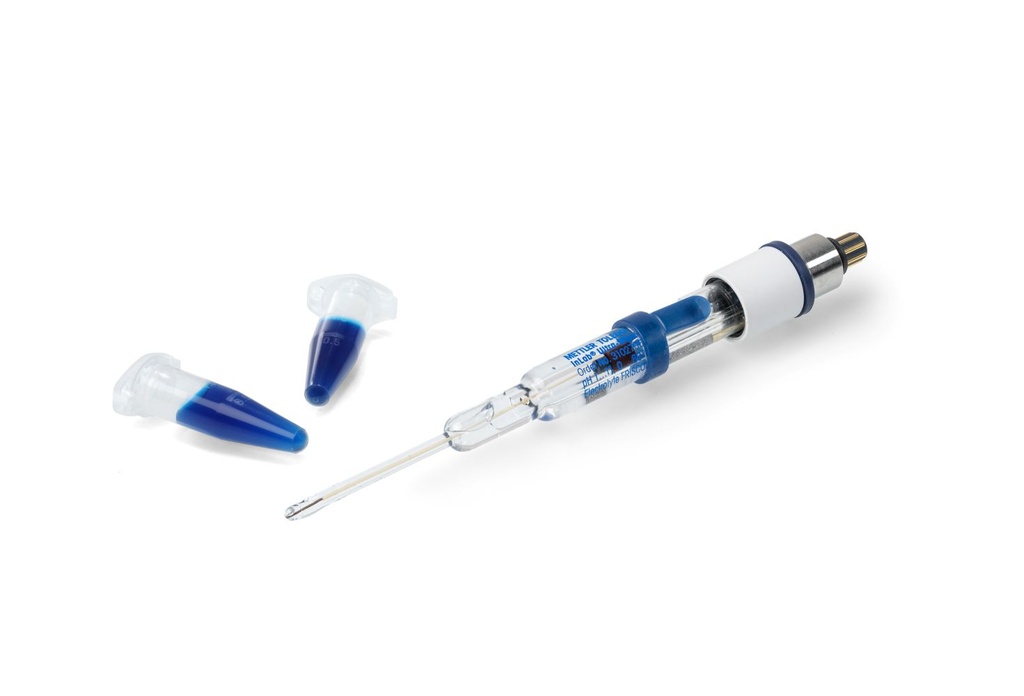

A glass body, micro combination pH electrode with sVP8 DES sensor head and DES® technology. Ideal for measuring in very small vessels such as vials, micro plates and cuvettes.

Small shaft for small samples: The slim shaft diameter allows measurements of very small sample volumes.

DES® - Diagnosable Efficient Sustainable: Increased efficiency with sensor diagnostics: faster problem solving, less downtime, maximized sensor lifespan and support of preventive maintenance.

ARGENTHAL™ - for a long electrode life: The ARGENTHAL™ reference system uses silver-ion-free electrolyte, thus eliminating the danger of the junction being blocked by sulfides or proteins.

Specifications:

• Use case: Enzyme solutions, proteinaceous samples, TRIS buffers
• Connector: Mini-DIN - requires Signal Bridge (sVP8)
• Measuring range, pH: 1 – 11
• Minimum sample volume: 15 µL
• Reference system: ARGENTHAL® with Ag+ trap
• Reference electrolyte: FRISCOLYT-B®, refillable
• Sample composition: Aqueous; samples containing proteins, TRIS, or sulfides; high salt content
• Sample consistency: Liquid
• Sample temperature: 0 °C – 100 °C
• Sensor Type: Combined electrode
• Shaft Diameter: 3 mm (tip)
• Shaft Material: Glass
• Shaft length: 40 mm (tip)
• Signal Type: Digital
• Temperature probe: NTC 30 kΩ
• Measuring range, temperature: 0 °C – 80 °C
• Junction: Ceramic
