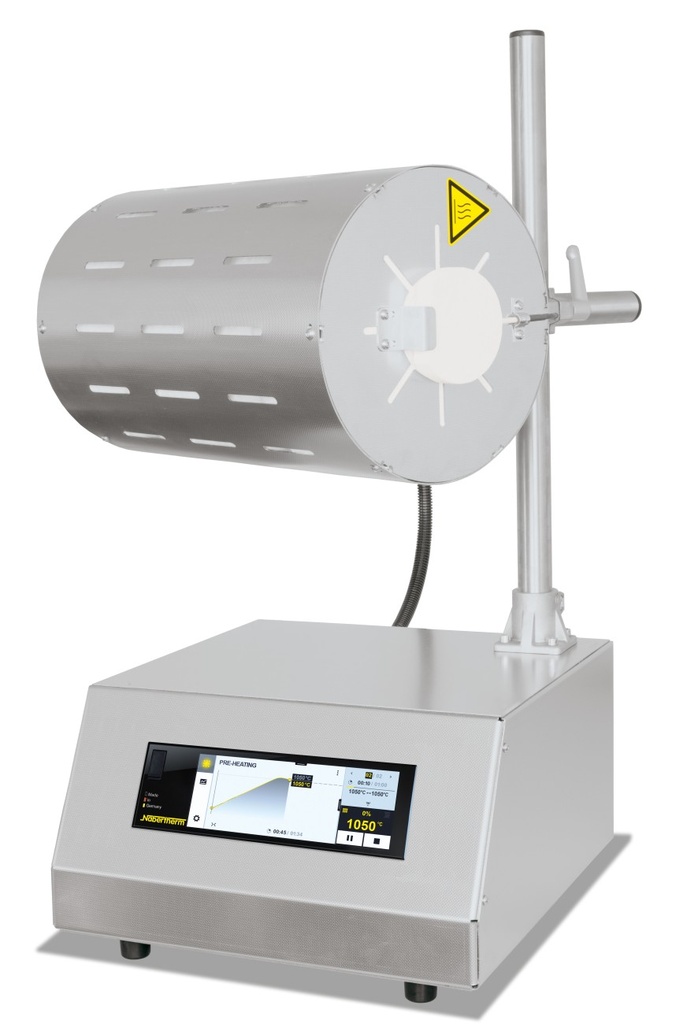

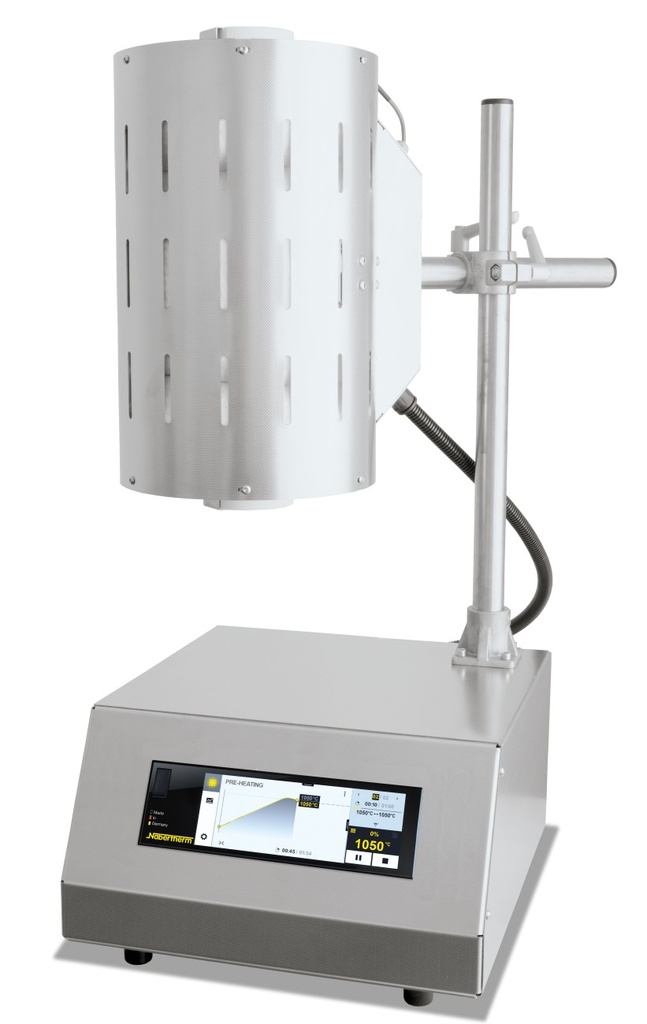

Højtemperatur rørovn i kompakt design, max temperatur; 1300°C. Kan vinkels vandret, lodret eller som du ønsker.

- Dobbeltskalhus beklædt med rustfri stål plader og ventilatorkøling sikrer lav       overfladetemperatur

- Isoleringsmateriale; i.h.t. EU-forordning nr. 1272/2008 (CLP)

- Rør vinklen kan justeres trinløst: 0 - 90°, flydende højde indstilling.

- Keramisk rør; C530 inkl. to fiberpropper og type S termoelement

- Varmetråde viklet direkte rundt om arbejdsrøret gir hurtig opvarmning

- Kontroller B510 (5 programmer med hver 4 segmenter)

Angle infinitely adjustable from 0 to 90

Working height infinitely adjustable

Operation also possible without stand if safety guidelines are observed

Ceramic working tube C 530 including two fiber plugs for operation under air

Type S thermocouple

Solid state relays provide for lownoise operation

Heating wires wound directly around the working tube resulting in very fast heat-up rates

Control system integrated in furnace base

Defined application within the constraints of the operating instructions

NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Controller B510 (5 programs with each 4 segments)
