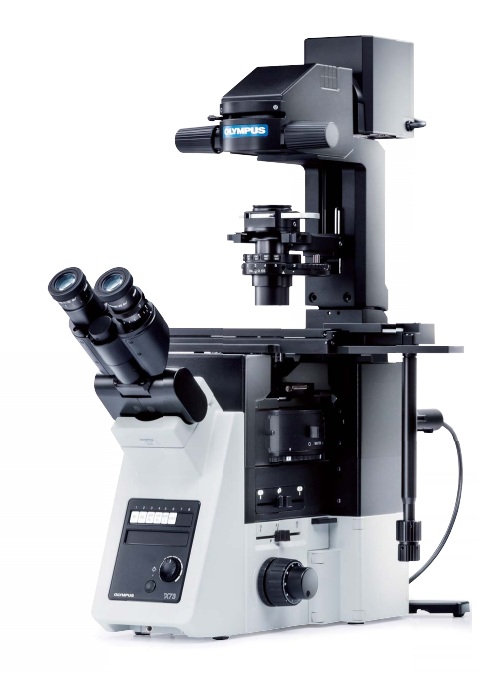

Model: Olympus IX73 PH FL
Indbygget kontrastmetode: Lysfelt (brightfield), fasekontrast, flourescens, relief contrast
Kikkertsigte: Trinokulært observations tube med 30-85-graders hældning, dioptri justering
Okularer: 10X/22 bredfelt, fokuserbar
Objektivrevolver: Manuel kodet 6-positioner
Objektivklassifikation: Universel C plan flourite, semi-aprochromat fase objektiv
Objektiver: 4x (NA 0.13), 10x (NA 0.3), 20x (NA 0.7), 40x (NA 0.6)
Objektbord: Mekanisk X/Y, 114x75mm, højrehåndsjustering
Kondensor: Universel kondensor til lysfelt (brightfield), fasekontrast, relief contrast og DIC, NA 0.5
Lyskilde: LED- og halogen
Filter cubes: Wide UV (excitation filter 340-390nm, beam splitter 410nm, barrier filter 420nm), Wide Blue-Violet (exitation filter 400-440nm, 455nm beam splitter, barrier filter 460nm), Wideband Green (excitation filter 530-550nm, beam splitter 570nm, barrier filter 575nm), Wide Yellow (excitation filter 540-585nm, beam splitter 595nm, barrier filter 600nm),
Tilbehør: Transmitteret illuminator, kodet kontrolboks, ring slit til fasekontrast, filtercubes (Wide UV, Wide blue/violet, Wideband green, Wide yellow)strømforsyning, støvcover, linsepapir
Opgraderings muligheder: Softwaremuligheder, ekstra objektiver, digitale kameraløsninger, DIC
De fire filtercubes kan bl.a. benyttes til følgende floroforer:
Wide UV (U-FUW FL) filter:
Alexa Flour 350/405, Calcein Blue, Calcoflour White, DAPI, Hoechst 33258/33342
Wide Blue-Violet U-FBVW FL filter:
Alexa Flour 430, ECFP, Mithramycin, Tetracycline
Wideband Green U-FGW FL filter:
Alexa Flour 555/568, Cy3, DsRed2, Ethidium Bromide (EtBr), RFP (DsRed), TRITC
Wide Yellow U-FYW filter:
Alexa Flour 568/594, Cy3.5, TexasRed
