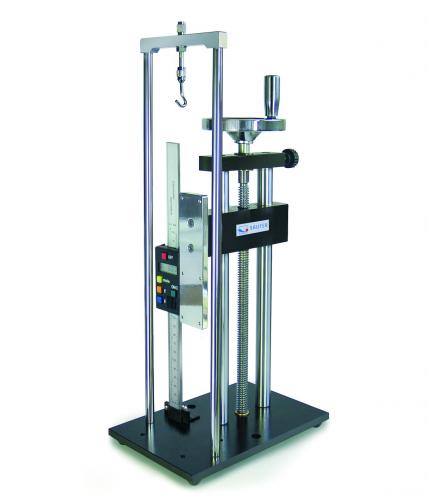

Test stand TVL, manual
Manual test stand for highly accurate tensile and compressive force measurement, with length measurement.
-For vertical and horizontal use
-Precise measurement results
-High level of security with repeated measurements
-Large base plate with various holes for fixture mountings
-Can be used for force gauges up to 500 N (not included)
-Digital length meter: Zero setting possible, pre-length can be set manually

Specifications
Digital length meter
Measuring range: max. 200 mm
Readout: 0.01 mm
Max travel from base plate: 297 mm
Travel distance per knob rotation (one turn): 3.1 mm
Dimensions (W x D x H): 151 x 234 x 465 mm
Net weight: approx. 8.3 kg

Type TVL
Measuring range (max.) 500 N
