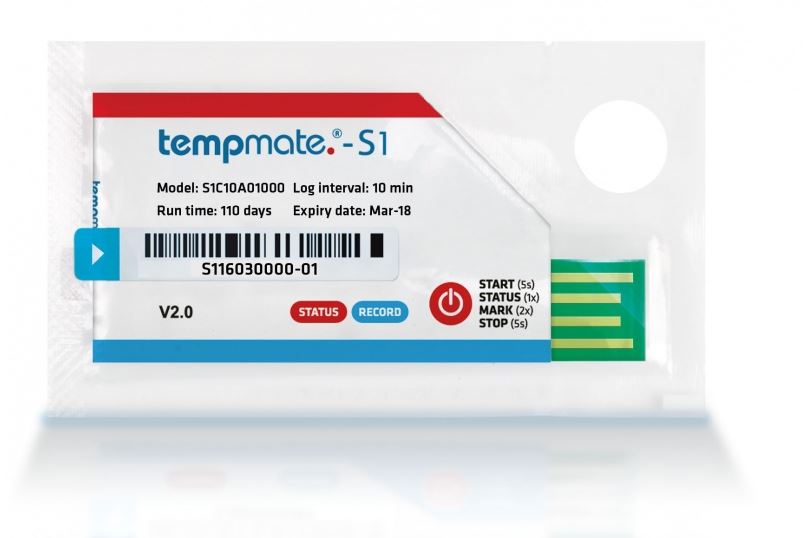

Disposable data logger TempMate-S1
The single-use data logger TempMate-S1 with its built-in USB connector, is the ideal solution for low-cost temperature monitoring of transports. TempMate-PDF loggers directly useable with pre-programmed configuration or reprogrammable with Tempbase Software according to each customer's specifications. To download the recorded data, simply connect TempMate-S1 directly to the USB port. A PDF and CSV report will automatically be generated, covering temperature graph, detailed data list and statistical information. No hardware (cable, interface) or software is required.

-Auto generating PDF and CSV format data report
-110 days run time 16.000 measurements, 10 minuteinterval
-Reprogrammable with Tempbase Software free of charge
-Up to 5 alarm points configurable
-Integrated USB connector
-LED Alarm indicators
-Serial number sticker
-Inclusive certificate
-Food proof according to HACCP

Specifications
Temperature Range: -30 to +70 °C
Accuracy: ±0,5 °C at -20 to +40 °C / ±1.0 °C in remaining range
Resolution: 0.1 °C
Data Memory: 16,000 measurements
Recording Cycle: 110 days
Sampling Interval: 10 min
Shelf Life: 24 months
Dimensions (L x W x H): 80 x 47 x 7 mm
Weight: 14.6 g
Protection Class: IP67 / NEMA 6
Certifications: Calibration Certificate, CE, RoHS, EN 12830 S, T, C, D, 1

Type Disposable data logger TempMate-S1
