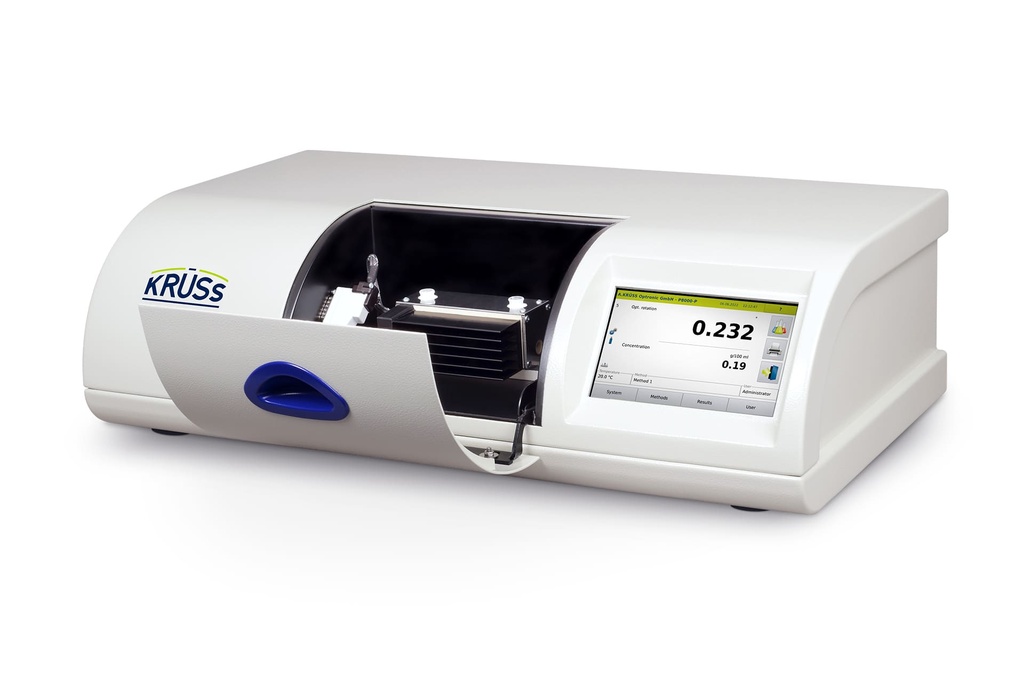

Polarimeter P8000 series, P8100
The P8000 with a measurement accuracy of ±0.003° and the P8100 that achieves ±0.002°. Both devices offer the option of a semi-automatic or automatic operation using a peristaltic pump or an autosampler, respectively, and feature all the functions that are important in FDA-regulated sectors. They are suitable for nearly all samples as the parts that come in contact with the sample are chemical-resistant, and for any application, we offer the matching measurement tube in glass or stainless steel. Simple and well-arranged user interface.

Specifications
Type P8100
Measuring method / Scale: Optical rotation [°], int. sugar scale [°Z], concentration [g/100 ml], spec. rotation customized
Measuring range / Resolution: ±90° / 0,001 ° , ±259 °Z / 0,01 °Z , 0 to 99.9 g/100 ml / 0.1 g/100 ml
Measuring time: ±90° 1 s
Measuring Accuracy: up to ±0.002°
Temperature range: 0 to 99,9 °C
Temperature Resolution: 0.1 °C
Temperature Accuracy: ±0.2 °C
Temperature measuring point: TubeLight source: 1 LED with filter
Wave length: 589 nm
Max. tube length: 220 mm
Permeability : min. 0.1 % (OD3)
Calibration: Automatically (menu driven)
Display: 5.7''-TFT-Touchscreen, 640 x 480 Pixel
Interfaces: 1x USB, 1x RS-232, 1x Ethernet
Operating voltage: 110-250 V, 50/60 Hz
Housing: Steel, powder coated
Dimensions (W x D x H): 645 x 360 x 200 mm
Weight: 28 kg

Description Digital polarimeter without temperature control
