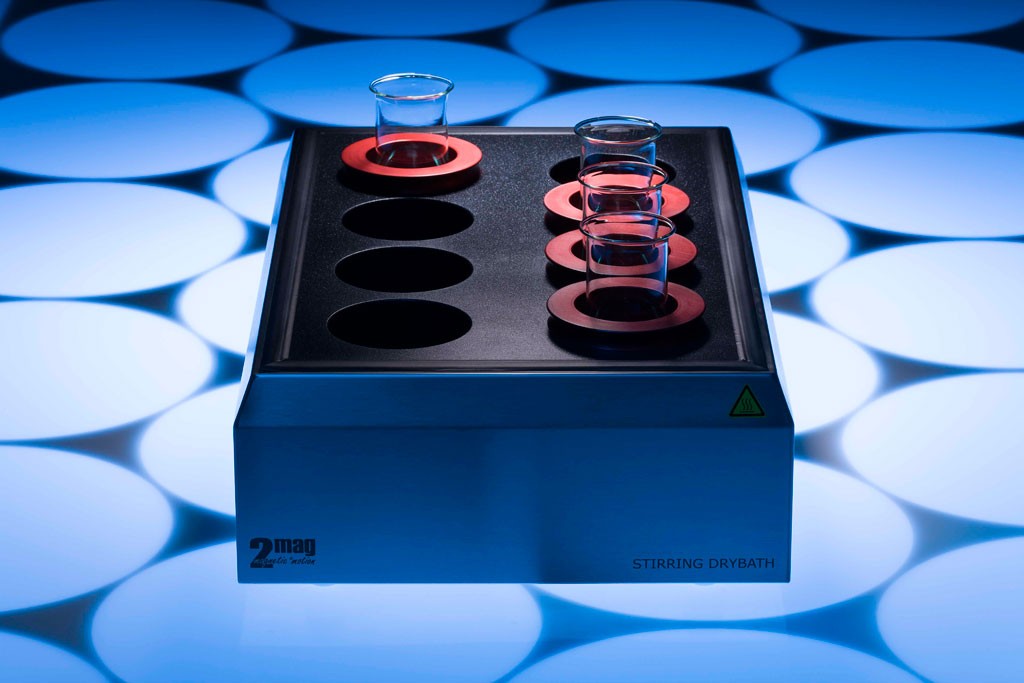

Multiple stirring heating blocks, STIRRING DRYBATH
For viscosity measurements, R&D, combinatorial chemistry, biological applications, testing the solution behaviour of synthetic materials, quality control in food, chemical and waste water technology, simple and easy system integration.

Stirring - Maintenance-free and wear-free by 2mag inductive drive, extremely wide speed range of 100 rpm to 2,000 rpm, 100 % synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar.

Heating - Massive heating block made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40 % at high temperatures.

Type DRYBATH 8-250 ERL
Stirring positions: 8
Stirring centre distances: 100 mm
Block hole Diam. x depth: 87,2 / 78 mm
Stirring capacity: 1 - 250 ml
Dimensions (W x D x H): 345 x 525 x 140 mm
Weight: 38.0 kg
