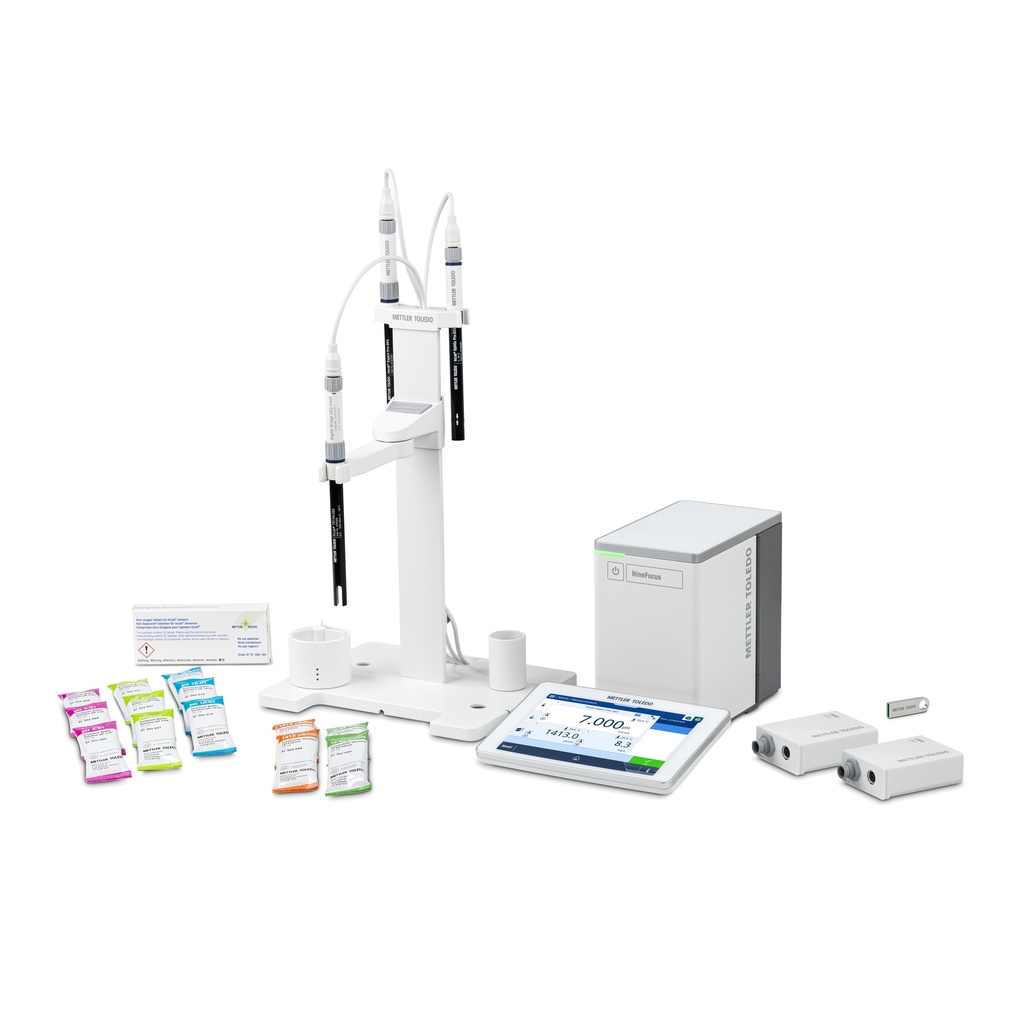

The NF2340 Kit includes 3 measurement modules, InLab Expert Pro-DES, 731 Pro-DES and OptiOx Pro-DES sensors, an electrode arm and standards for initial calibration. It features a modular system, sensor diagnostics and regulatory compliance support.

Specifications as delivered:

• Channel: Triple-channel (digital)
• Parameters: pH/mV, conductivity, DO
• Sensor included: 3 generalist sensors for pH/mV, conductivity, and DO

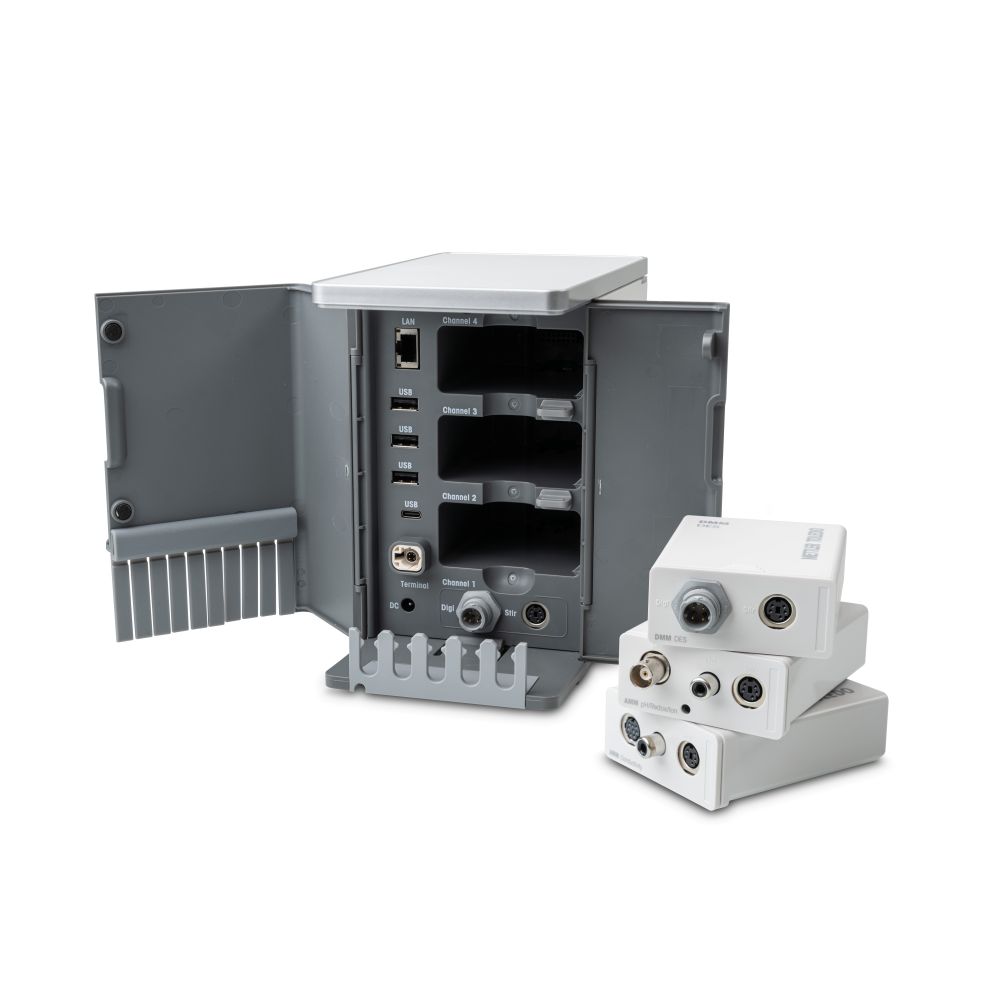

• Modules included: Built-in digital module for all DES sensors
• Compatible with Intelligent Sensor Management (ISM): No
• pH measuring range, meter: -2 to 20
• pH accuracy, meter: 0,002
• pH resolution, meter: 0,001; 0,01 ; 0,1 (variable in range)
• mV measuring range, meter: -2000 to 2000 mV
• mV accuracy, meter: 0,1
• mV resolution, meter: 0,1; 1 (variable in range)
• Conductivity measuring range, meter: 0,001 µS/cm - 2000 mS/cm
• Conductivity accuracy, meter: 0,5 %
• Conductivity resolution, meter: 0,001 - 0,1 (variable in range)
• DO measuring range, meter: 0.000 – 50 mg/L (ppm)
• DO accuracy, meter: ± 0.1 mg/L from 0 – 8; ± 0.2 mg/L from 8 – 20; ± 10% from 20 – 50
• DO resolution, meter: 0,001
• Ion concentration measuring range, meter: -2.000 – 20.000 pX; 0 – 999 999 mg/L (ppm)
• Ion concentration accuracy, meter: ±0,5 %
• Temperature range, meter: -30 °C to 130 °C
• Temperature accuracy, meter: ±0,1 °C between 0 °C and 100 °C
• Temperature resolution, meter: 0,1 °C
• Connectors, sensors: to DES cable
• Connectors, others: HSD, LAN, Mini-DIN, USB A, USB C
• Data transfer: PC, printer, USB stick
• Expandability: Barcode reader, stirrer, additional parameters
• Memory size: 3000 result sets
