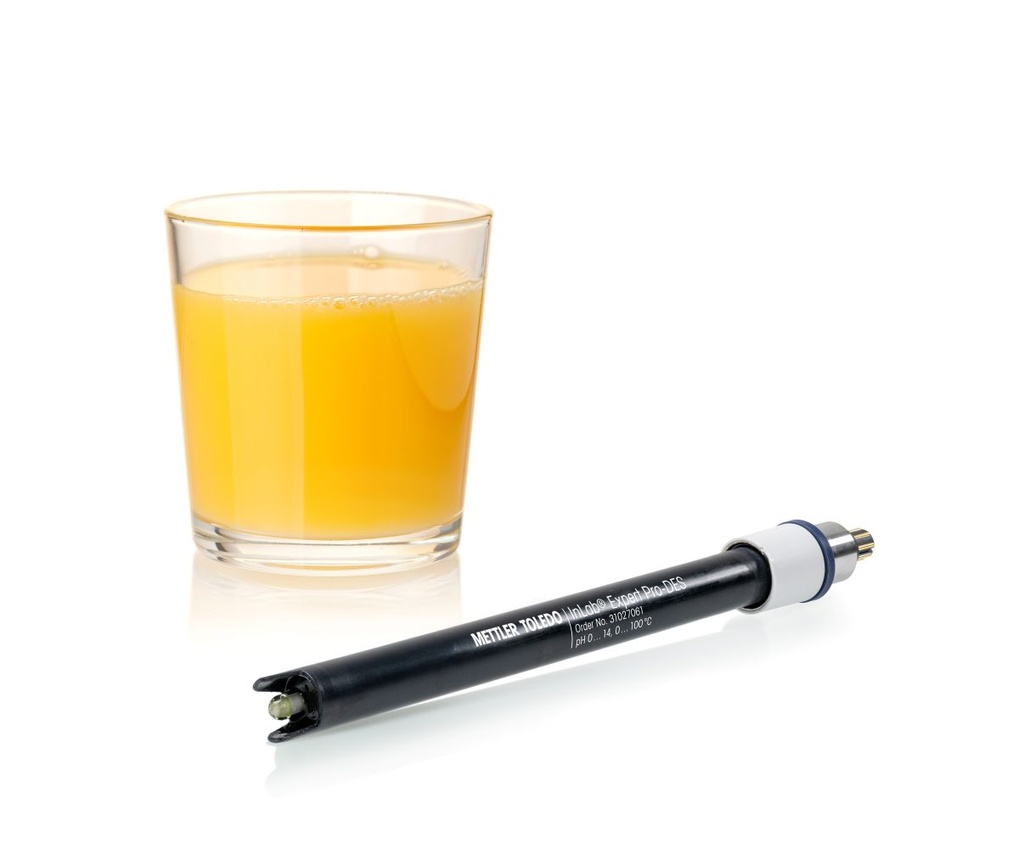

InLab Expert Pro-DES
A combination pH electrode with integrated temperature sensor, PEEK shaft, detachable cable, and DES® technology. Designed for general applications in the lab and ourdoors; robust and maintenance-free.
For the toughest conditions: PEEK shaft with excellent chemical and mechanical resistance, a real heavy-duty sensor.
No junction, no clogging: Due to the solid XEROLYT® reference electrode, no membrane junction is needed, which eliminates the risk of clogging.
Stay ahead: The sensor's diagnostic capability means peace of mind for the sensor condition. It supports preventative maintenance, maximizes the sensor's lifespan, and prevents premature discard.
Sustainable investment: DES® digital sensors are a smart choice. Retaining the measurement electronics and only replacing the sensor shaft at the end of its life, or the detachable cable that can be used for all sensors, helps reduce material waste and thus the ecological footprint.
Boost productivity and efficiency: With diagnosed errors, the user guidance with troubleshooting recommendations allows for faster problem-solving, thus reducing downtime. It also minimizes handling errors therefore cutting down on the need for specialized training.
Specifications:
- Use case: General purpose
- Connector: Mini-DIN - requires Signal Bridge (sVP8)
- Measuring range, pH: 0 – 14
- Minimum sample volume: 20 mL
- Reference system: ARGENTHAL® with Ag+ trap
- Reference electrolyte: XEROLYT® polymer, without refill
- Sample composition: Aqueous
- Sample consistency: Liquid; sludge, slurry or suspension
- Sample temperature: 0 °C – 100 °C
- Sensor Type: Combined electrode
- Shaft Diameter: 12 mm
- Shaft Material: PEEK
- Shaft length: 120 mm
- Signal Type: Digital
- Temperature probe: NTC 30 kΩ
- Measuring range, temperature: 0 °C – 100 °C
- Junction: Open, no membrane
