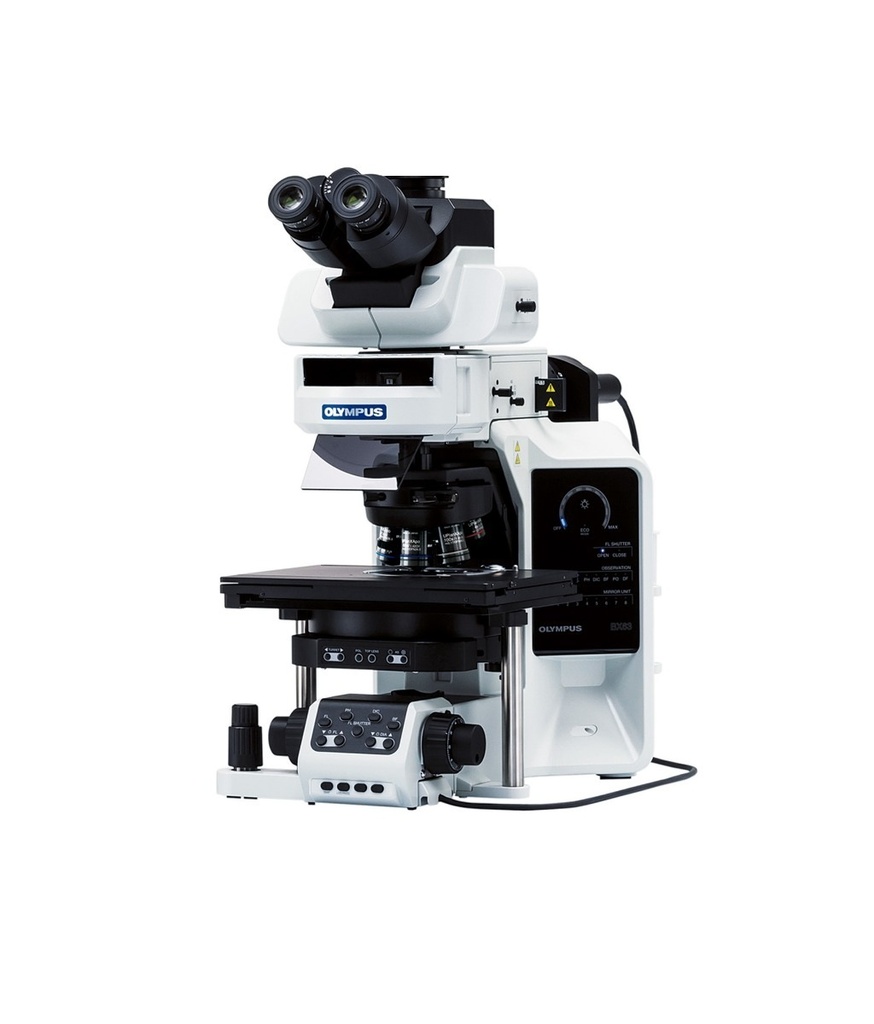

Model: Olympus BX63FL motoriseret
Indbygget kontrastmetode: Lysfelt (Brightfield), Fluorescens
Kikkertsigte: Trinokulært observations tube med justerbar hældning (5°-35°)
Okularer: 10X/22mm Bredfelt (Widefield), fokuserbar
Objektivrevolver: Motoriseret, 7-positioners motoriseret objektivrevolver
Objektivklassifikation: Universal Plan Extended Apochromat
Objektiver: 4x (NA=0.16), 10x (NA=0.4), 40x (NA=0.95)
Objektbord: Motoriseret X/Y stadie, (dovetail fixing mekanisme), 160x116mm, kapasitet til ét slide
Kondensor: Motoriseret, 8-positions, flourescens kondensor med reflekteret lys
Lyskilde: LED-lyskilde med høj farvegengivelse
Filter cubes: Narrow UV (exciter filter 360-370nm, beam splitter 410nm, barrier filter 420-460nm), Narrow Blue (exiter filter 470-495nm, 505nm beam splitter, barrier filter 510-550nm), Narrowband Green (exciter filter 540-550nm, beam splitter 570nm, barrier filter 510-550nm)
Tilbehør: Fluorescens lysmodul, motoriseret flourescens illuminator (8-positioners kubeturret), liquid light guide (1.5 m), kontrolboks
Opgraderingsmuligheder: Softwareopgradering (CellSens Standard eller Dimension), yderligere filter cubes og lysmoduler, ekstra objektiver, digitale kameraer
De 3 inkluderede excitationsfiltre har følgende florofor-muligheder:
Narrow UV excitationsfilter
1,8-ANS
(BAO) - Feulgen
Calcein Blue
DAPI
DPH
Filipin
Fast Blue
Granular Blue
Hoechst 33258, 33342
mBCI
OPT
Primuline
Stilbene Isothiosulphonic acid
True Blue
Narrow Blue excitationsfilter
Acridine Orange
Acridine Yellow
Alexa Flour 488
Alexa Flour 488-Phalloidin
Azami-Green
BAPTA-1
BAPTA-5N
BCECF
BTC
BODIPY FL
Calcein
Calcein Blue
Calcium Green
CFDA
Di0
Di0 C6(3)
Dronpa-Green
Eosin
EGFP
FITC
FlourX
FDA
Kaede
JC-1
Mito Tracker Green
Midoriishi-Cyan
NBD-Phallacidin
Oregon Green 488
PA-GFP
Rhodamine 123
S65T
SYTOX
Thiazole Orange
TOTO 1
WT
YO PRO 1
YOYO 1
Narrowband Green excitationsfilter
Alexa Flour 532
Alexa Flour 546
Alexa Flour 555
Alexa Flour 568
Cy3
Dil
DsRed
DsRed2
Ethidium Bromide
Ethidium homodimer-1
Kaede
LysoTracker Red DND-99
MitoTracker Red CMXRos
PE-B
PE-R
Phospholipid
PI
Pararosaniline-Feulgen
Resorufin
RH160
RH421
RH423
RITC
Rhodamine-Phallaoidin
TRITC
Pyronin Y
