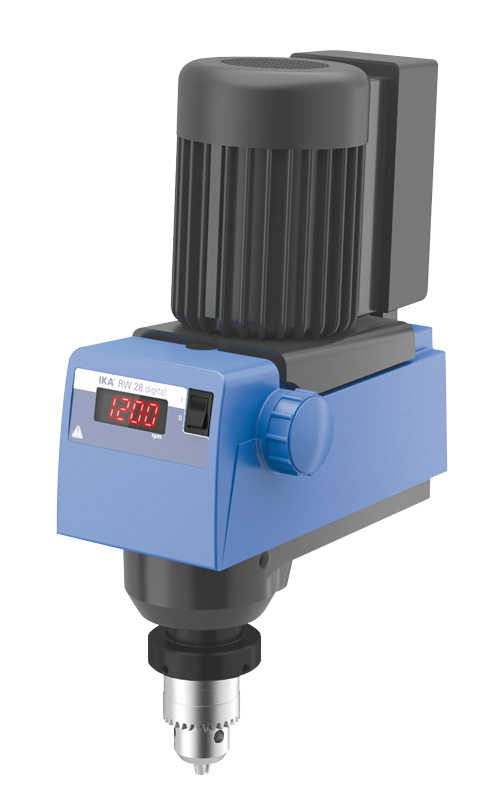

Stærk, mekanisk kontrolleret omrører. Kan oprøre op til 80 liter (vand) for brug i laboratoriet eller små pilotplant. 2 hastighedsområder, 60 - 400 o/min. for høj viskositet og 240 - 1400 o/min. for intensiv miksning. Velegnet til viskositet på op til 50.000 mPas. Analog indstilling med digital visning af hastigheden. Spændpatron til aksel fra 1 - 10 mm. Akslen kan føres helt igennem omrøreren. Til montering benyttes stang Ø145 x 16 mm, på bagsiden af omrøreren.
- Digital speed display
- Infinitely adjustable speed in two speed ranges
- Push-through agitator shafts
- Overload protection
- Error code display
- Robust, ergonomic design
- Quiet operation
- With constant power-drive
Specifications
Stirring quantity max. (H2O): 80l
Max. viscosity: 50000mPas
Motor rating input/output: 220 / 90W
Speed range (at 50/60 Hz):60 to 1400rpm / 72 to 1680rpm
Speed range I (at 50/60 Hz): 60 to 400rpm / 72 to 480rpm
Speed range II (at 50/60 Hz): 240 to 1400rpm / 288 to 1680rpm
Max. torque at stirring shaft: 900Ncm
Display: LED
Chuck range: 1 to 10mm
Dimensions (W x D x H): 123 x 252 x 364mm
Protection class DIN EN 60529: IP 40
Power supply: 220-240V, / 50/60Hz
